Resin 3D Printer

RXDent-L130 Ultra

Simplified Workflows · Faster Turnaround · Elevated Care

High-Precision Optical System & Stable Motion Control
Intelligent Temperature Management & Dual-Size Resin Vats
Efficient Digital Workflow

Technical Parameters of LCD Resin 3D Printer RXDent-L130 Ultra

Model	RXDent-L130 Ultra
Projection Technology	LCD
Light Source Wavelength	385 nm
XY Resolution	3840 x 2400
XY Accuracy	34 μm
Layer Thickness	0.01–0.2 mm
Molding Size (Large Vat) (X x Y x Z)	130 x 80 x 110 mm
Molding Size (Small Vat) (X x Y x Z)	60 x 60 x 110 mm
Printing Speed	1–8 s/layer
Touchscreen	5-inch HD Color Touchscreen
Connectivity	Wi-Fi / USB
Voltage	100–240 V, 50/60 Hz
Power	300 W
Dimensions (W x D x H)	320 x 420 x 500 mm
Net Weight	20 kg
Supported Languages	Multilingual

High-Precision Optical System & Stable Motion Control

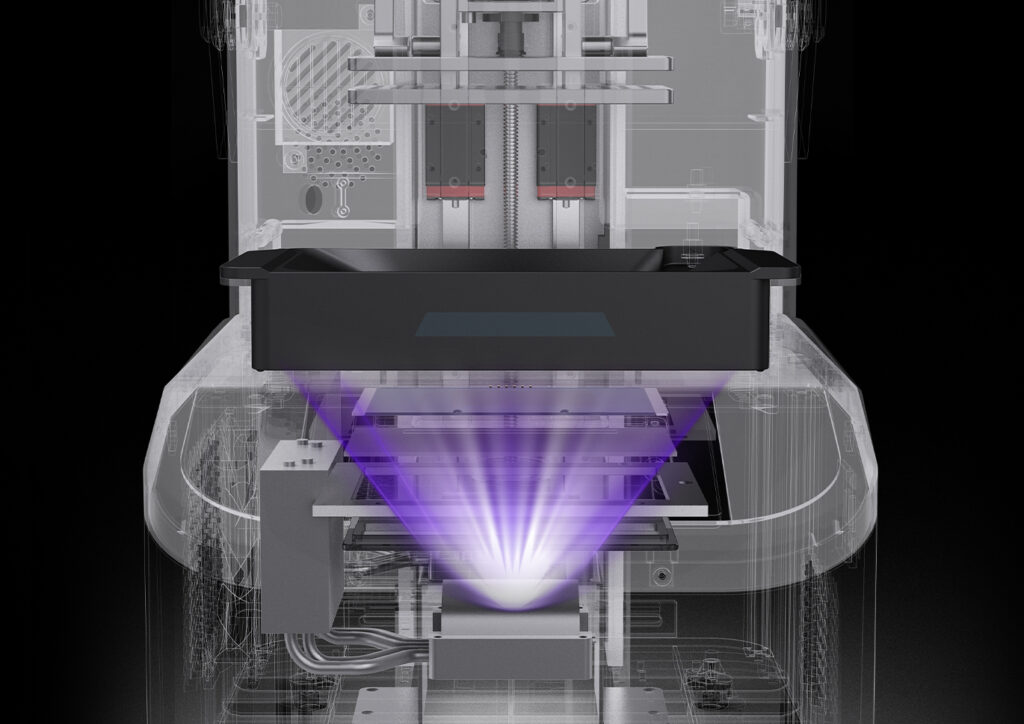

385 nm Dental-Dedicated Uniform Light Engine

Featuring a high-energy 385 nm UV light source with uniform distribution, the system is precisely matched to the curing characteristics of dental photopolymer resins, ensuring consistent full-screen exposure, accurately reproducing fine anatomical details and supporting precise restoration fit.

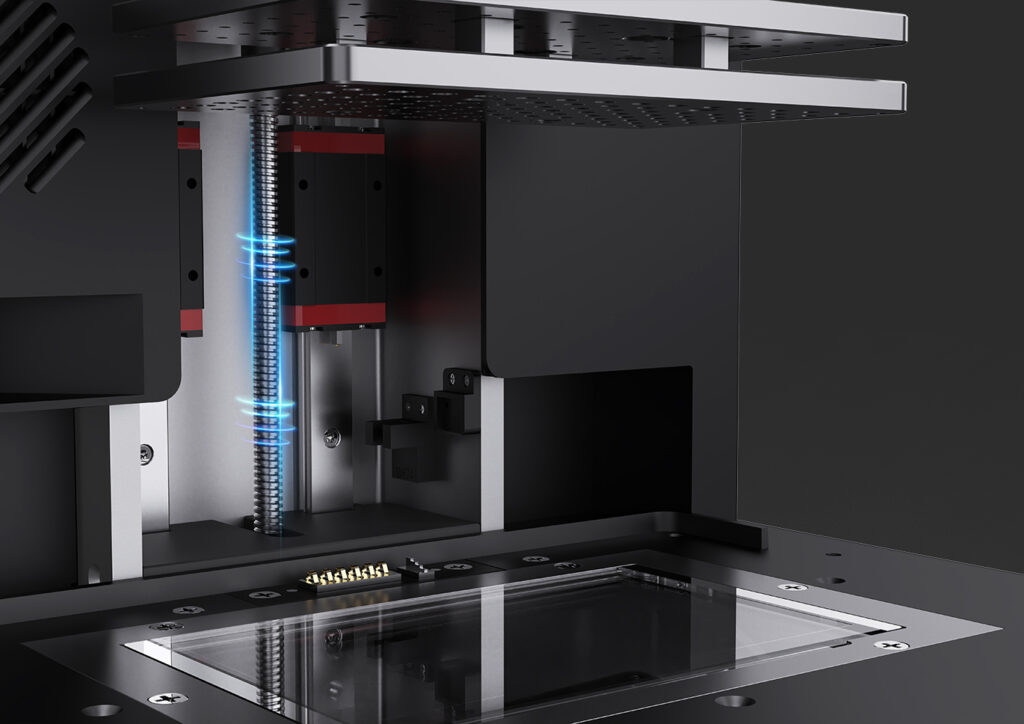

High-Rigidity Closed-Loop Z-Axis Motion System

Equipped with a precision ball screw and closed-loop stepper motor control system, the Z-axis achieves smooth micron-level movement, effectively reducing layer lines while enhancing surface quality and printing consistency.

Intelligent Temperature Management & Dual-Size Resin Vats

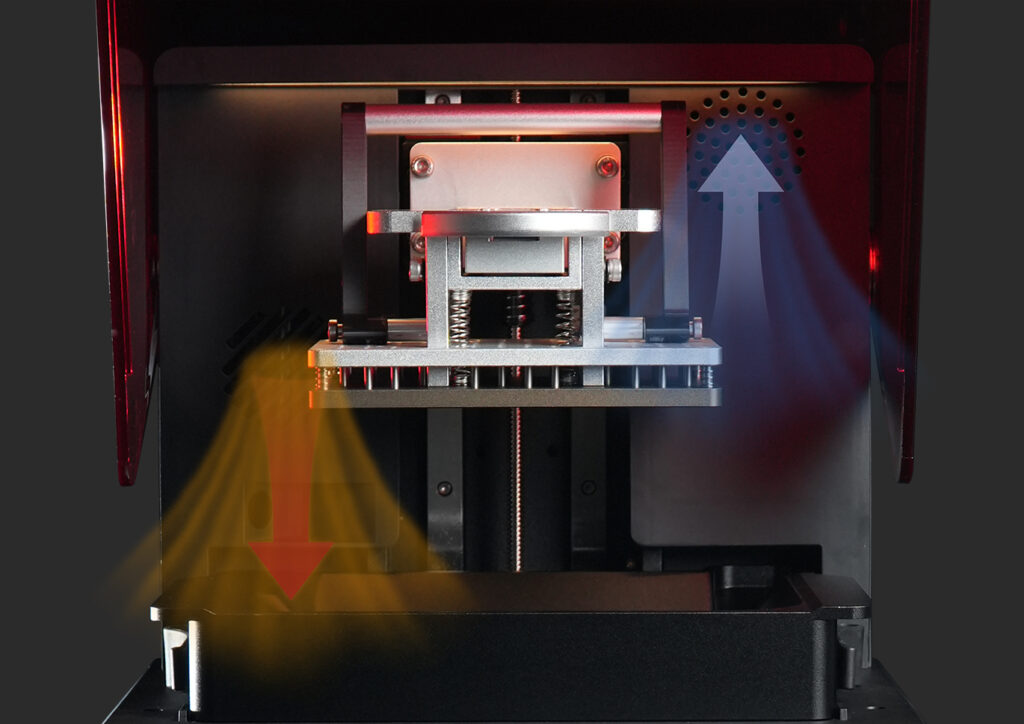

30°C Constant-Temperature Printing Environment

An integrated intelligent temperature control and air filtration system maintains a stable 30°C printing environment, reducing the flow resistance of high-viscosity dental resins and improving printing stability as well as overall print success rates.

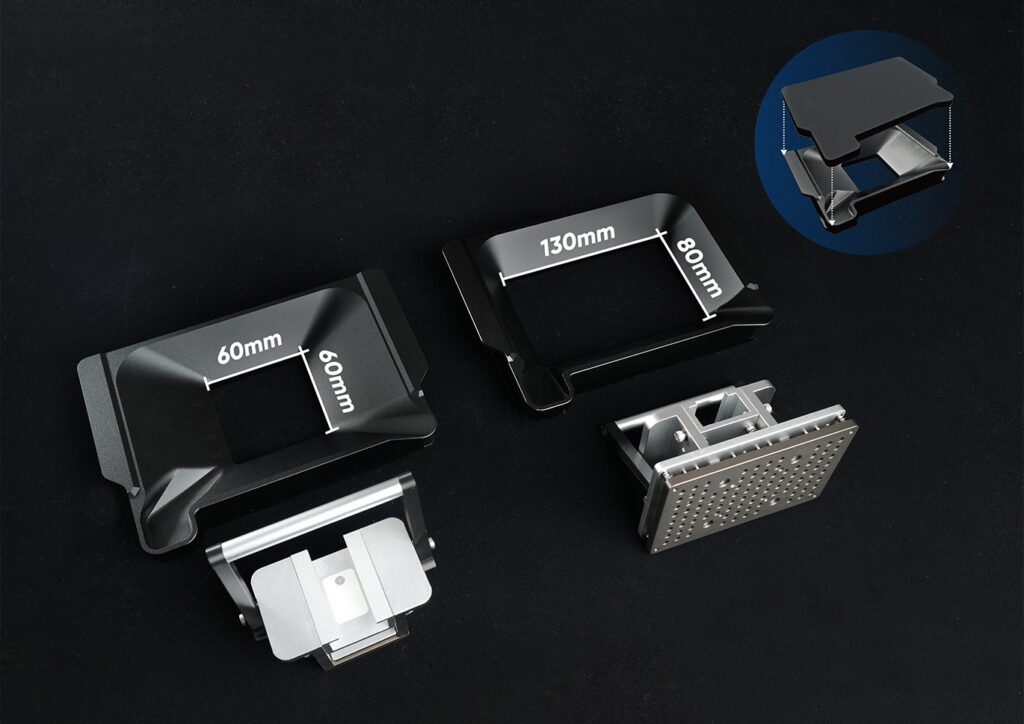

Dual Resin Vat Configuration

Equipped with a 130 x 80 mm large resin vat and a 60 x 60 mm small resin vat. A single dedicated cover is compatible with both vats, allowing remaining resin to be stored directly in the vat and reducing material waste. Flexible vat selection improves material efficiency for different applications.

Efficient Digital Workflow

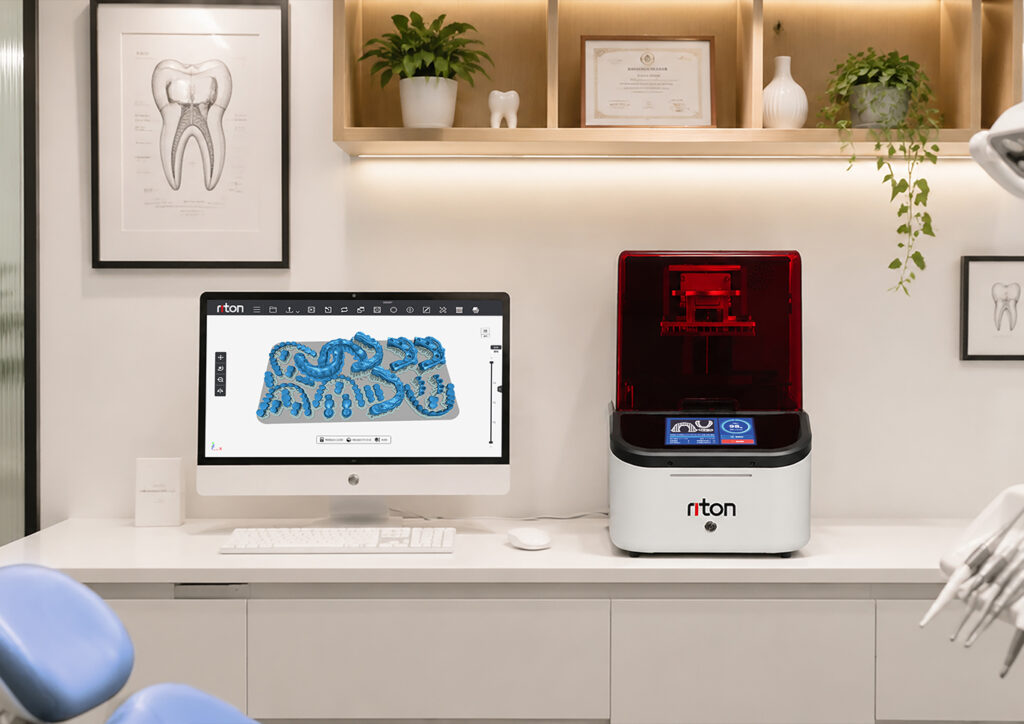

Intuitive Operation & Seamless Digital Workflow Integration

A 5-inch HD color touchscreen features a multilingual graphical user interface, with Wi-Fi wireless connectivity and USB connectivity.

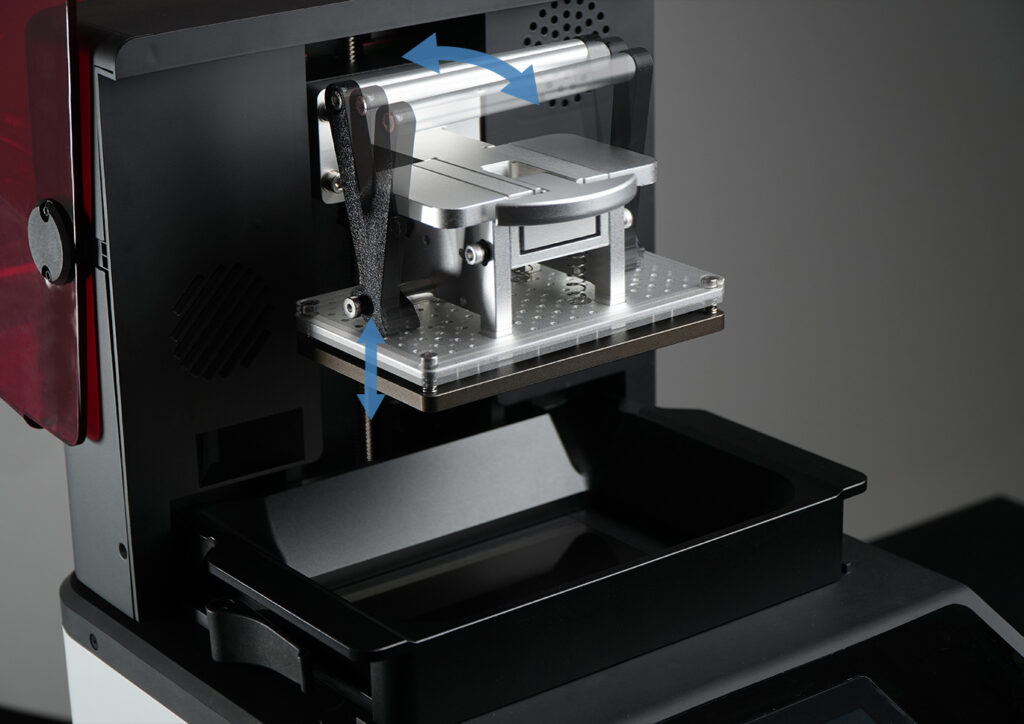

Spring-Assisted Leveling & Quick-Release Build Platform

A modular two-piece build platform with an easy leveling design helps reduce the risk of part warping or lifting during part removal. Fast and efficient part removal and cleaning improve overall chairside workflow efficiency.
