Desktop Intelligent Twisted Wire Bending Machine

WBM-T1

Chairside Wire Bending: Redefining the Digital Clinical Workflow

  • Clinical Autonomy: User-Friendly, Intuitive Digital Design
  • Micron-Level Precision: AI Vision Closed-Loop Control System
  • Clinical Space Integration: Compact & Quiet
Product Inquiry
Product Brochure

Twisted Wire Bending Machine WBM-T1 Technical Specifications

Item

Parameter

Dimensions

383×243 x263 mm

Weight

5 kg

Power Input

100~240 V AC, 50/60 Hz

Rated Power

15 W

Supported Wire Types

Twisted Wire

Wire Diameter

0.45~0.55 mm

Bending Speed

Up to 20 bends/min

Bending Angle

-85° to +85° ( Bi-directional )

Angular Accuracy

0.1°

Positioning Accuracy

0.01 mm

Control Mode

PC Software with AI Real-TimeClosed-Loop Control

Interface

USB + LAN

Clinical Autonomy: User-Friendly, Intuitive Digital Design

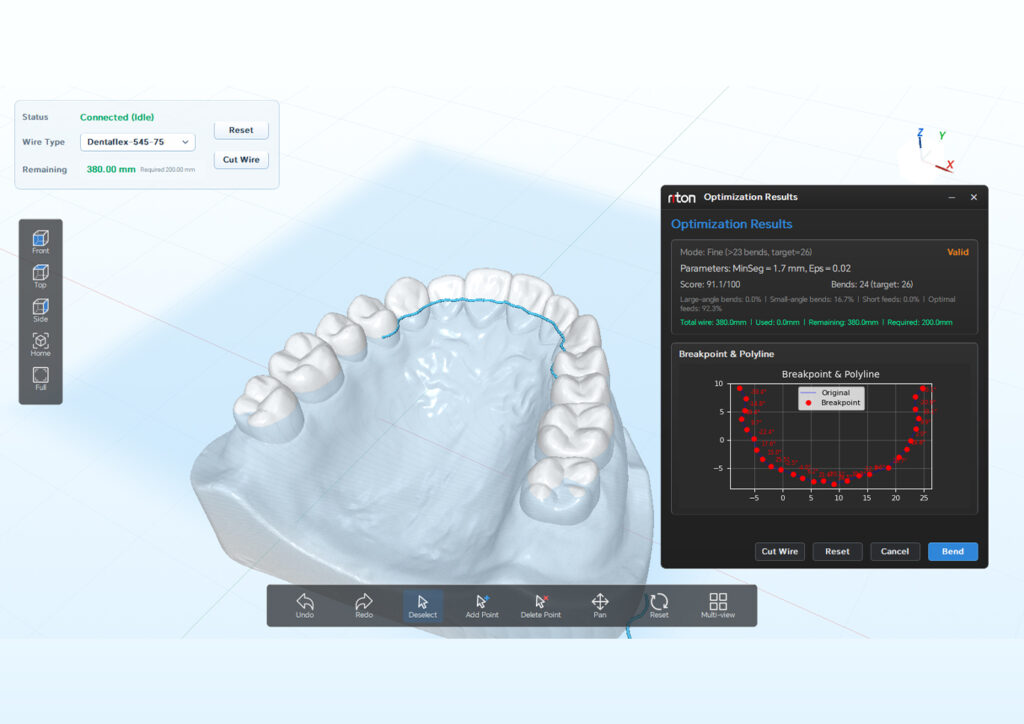

AI-Powered Automated Routing

  • Automatically generates an optimal retainer wire path based on tooth alignment and arch form.

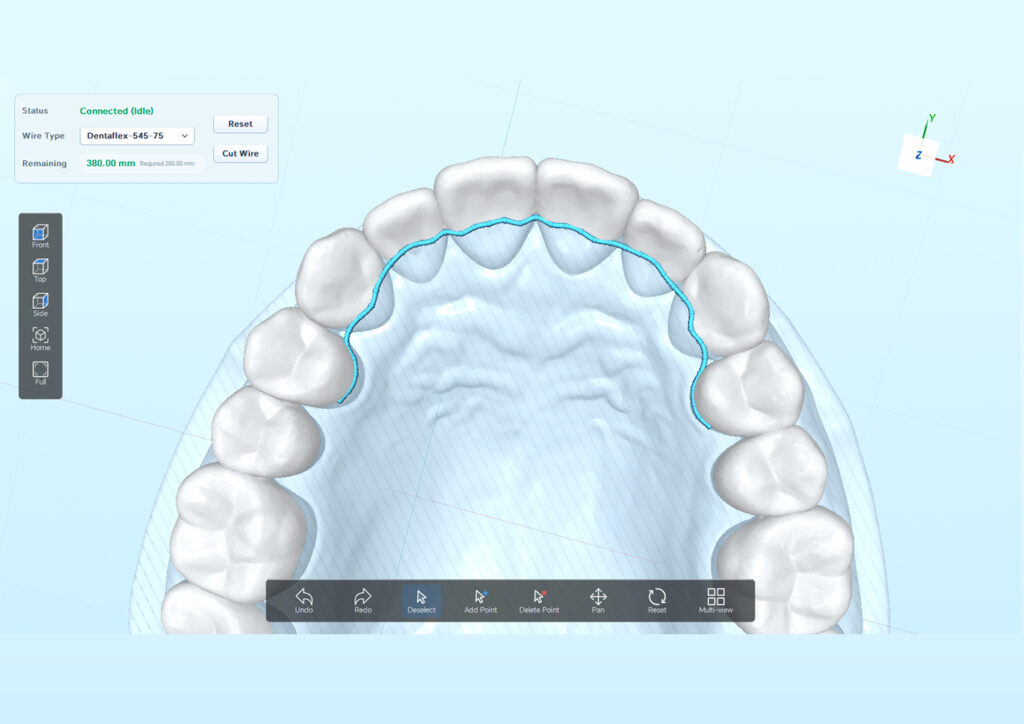

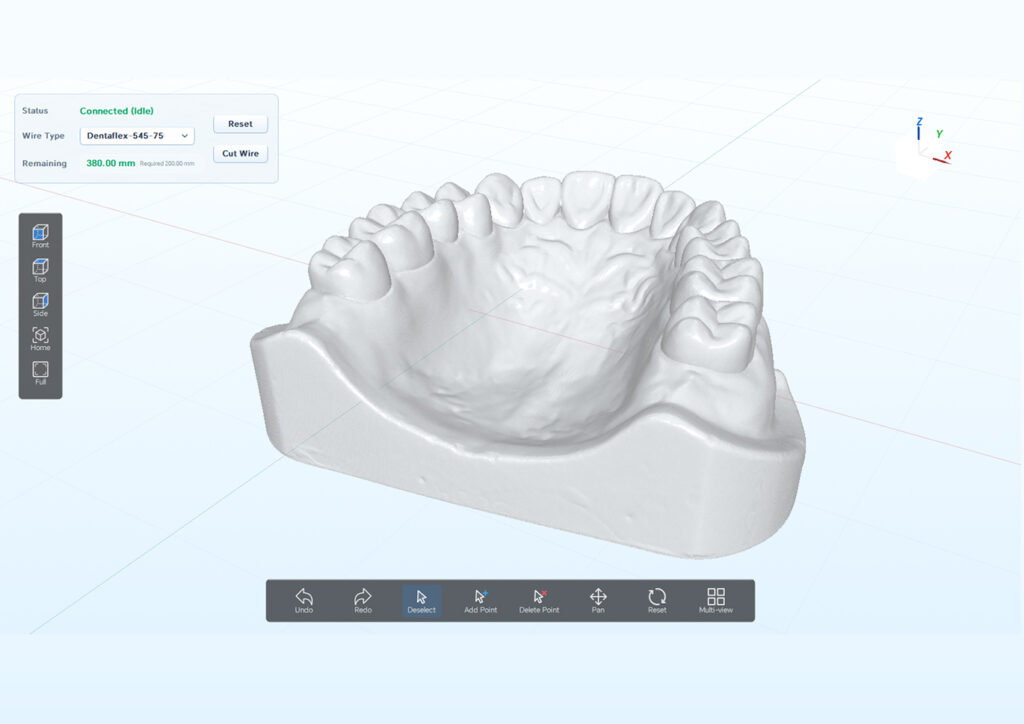

Visual Wire Path Editing

  • Drag control points for intuitive wire path adjustment.

  • Make real-time visual adjustments with greater flexibility for complex clinical cases (e.g. tooth misalignment, multi-tooth stabilization).

One-Click Fabrication

  • Initiate bending with a single click after design approval.

  • The software seamlessly connects with the hardware.

  • A seamless workflow from design to production.

  • Produce a customized retainer wire within 15 minutes.

Micron-Level Precision: AI Vision Closed-Loop Control System

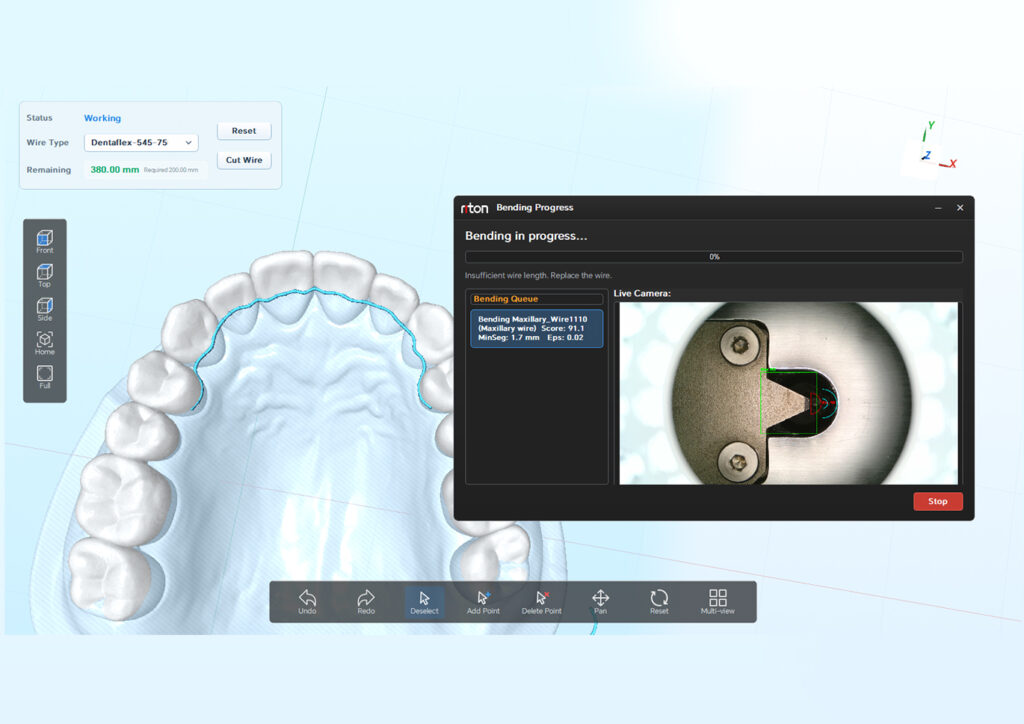

Real-Time Capture per Bend

  • A high-resolution industriol camera captures every bend in real time, enabling immediate feedback and automatic error correction.

Multiple Proprietary AI Fine-Tuning Algorithms

  • Integrates advanced algorithms-including dual-ROI cross-validation, self-learning springback compensation, and large-angle segmented tuning to ensure high repeatability and shape stability.

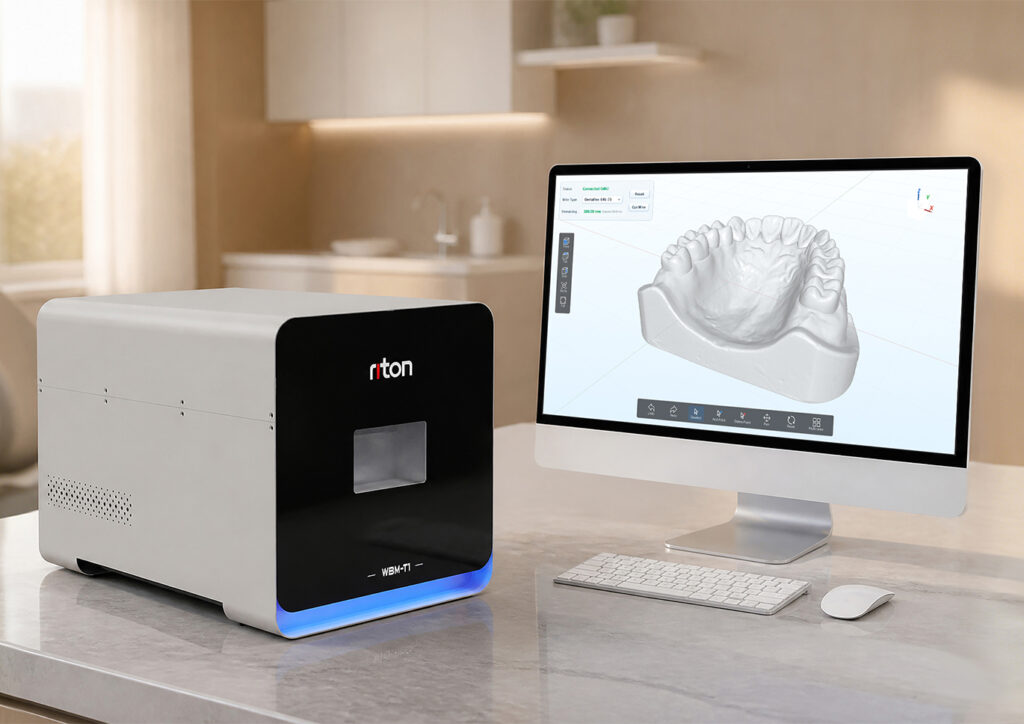

Clinical Space Integration: Compact & Quiet

  • A4-Sized Footprint
    Compact dimensions ( 383 x 243 x 263 mm ) require only about the space of an A4 sheet of paper.

  • Lightweight and Portable

    Weighing less than 5 kg, the machine can be easily carried with one hand and shared between treatment rooms.

  • Fully Electric, Quiet Operation
    No noisy air compressors, no oily odors, Just plug and play in between patient appointments for instant fabrication.
  • Low Power Consumption & Simple Connectivity

Operating at only 15 W, it supports USB and LAN connectivity, allowing effortless control from a standard laptop.

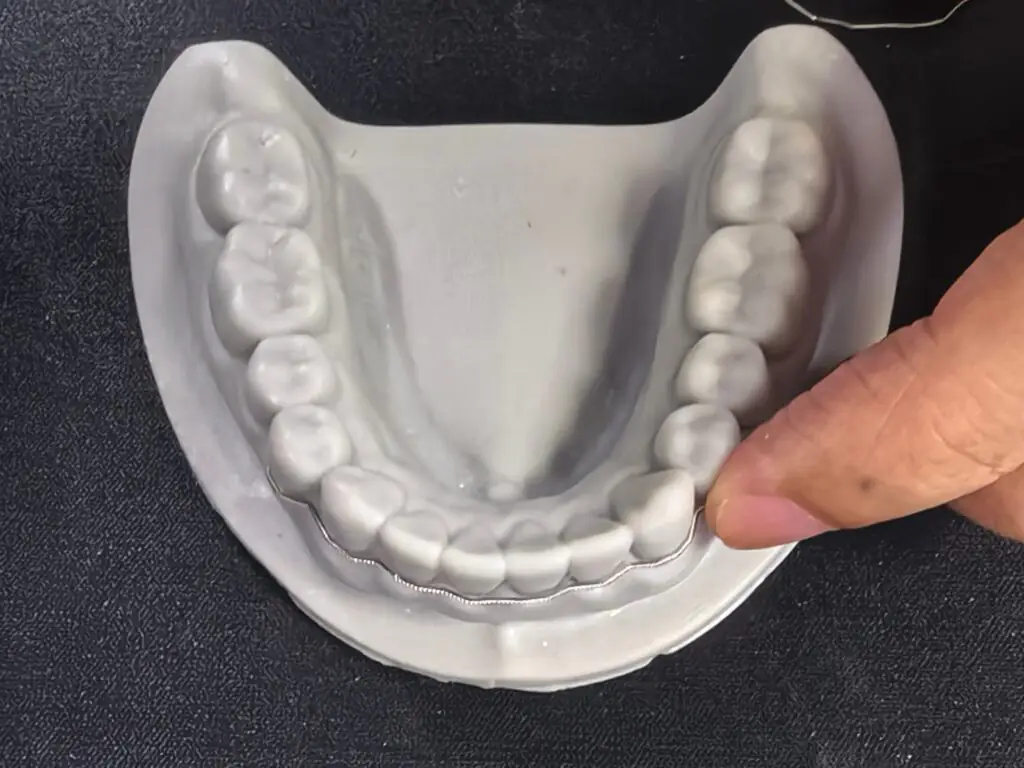

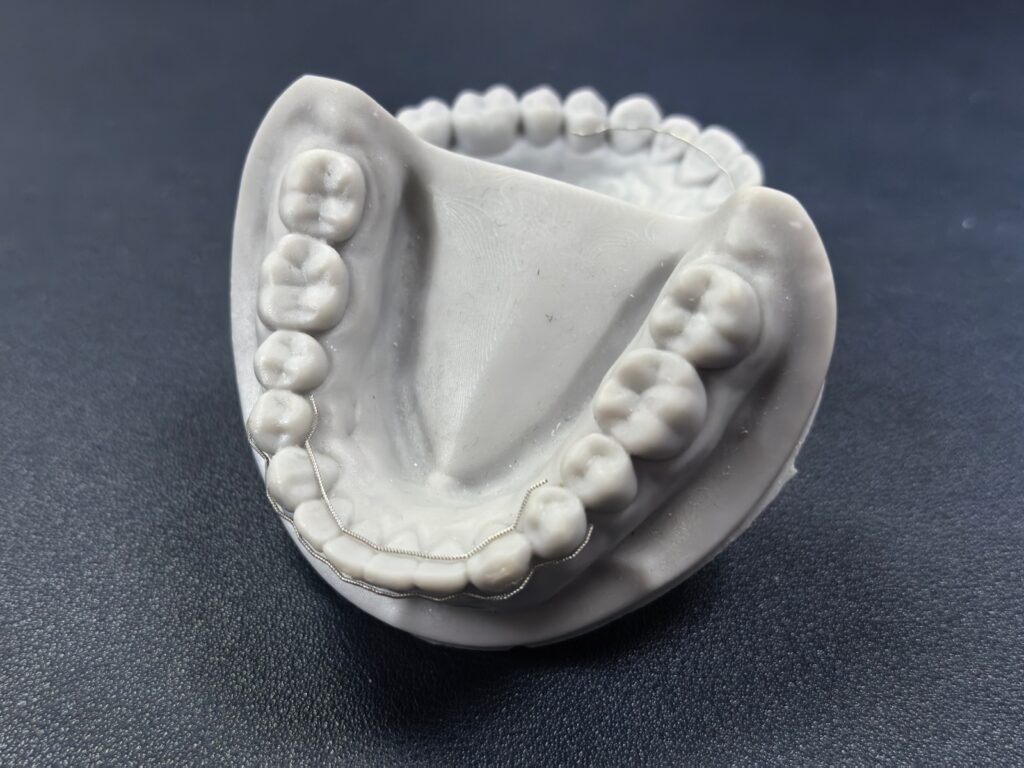

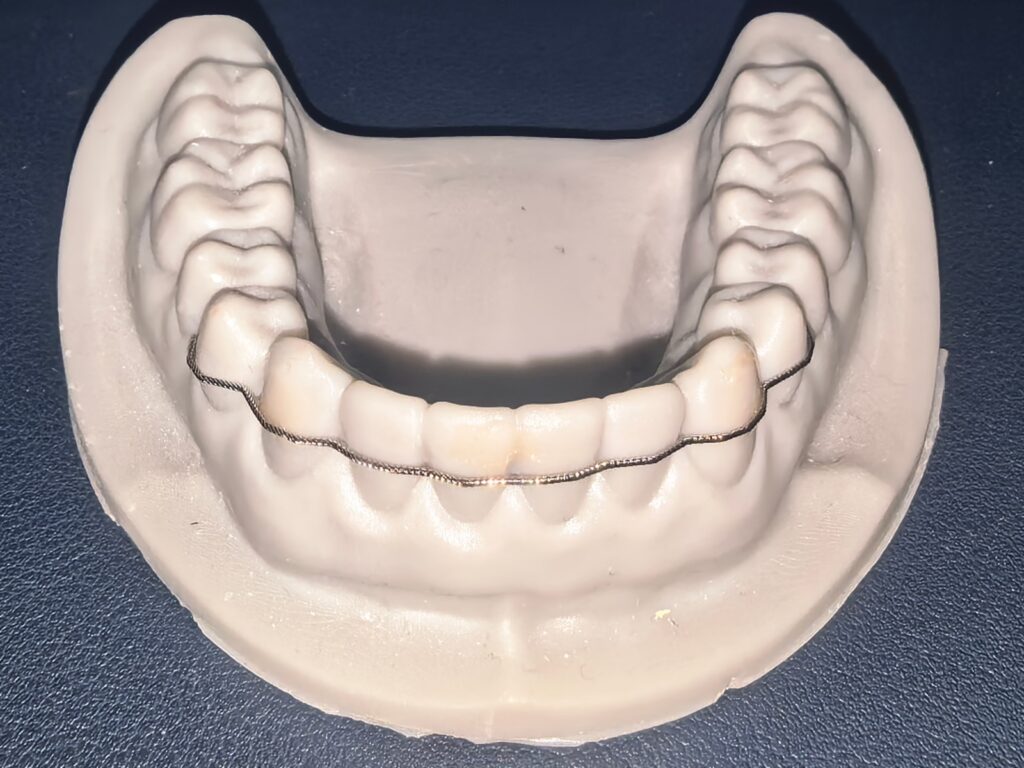

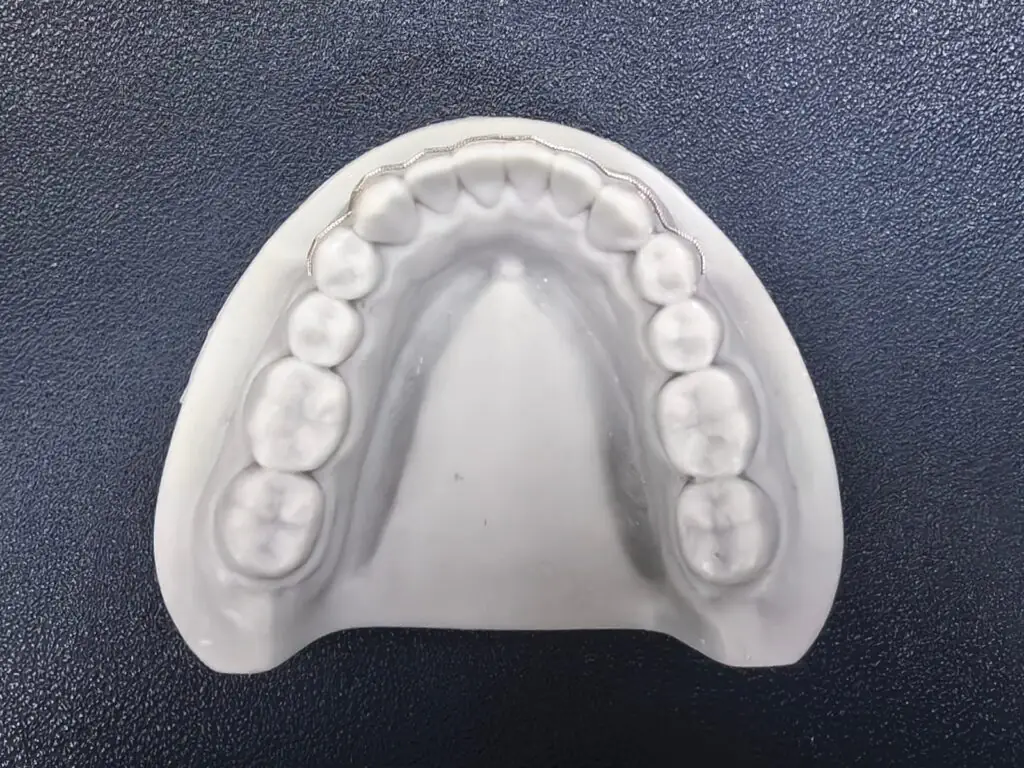

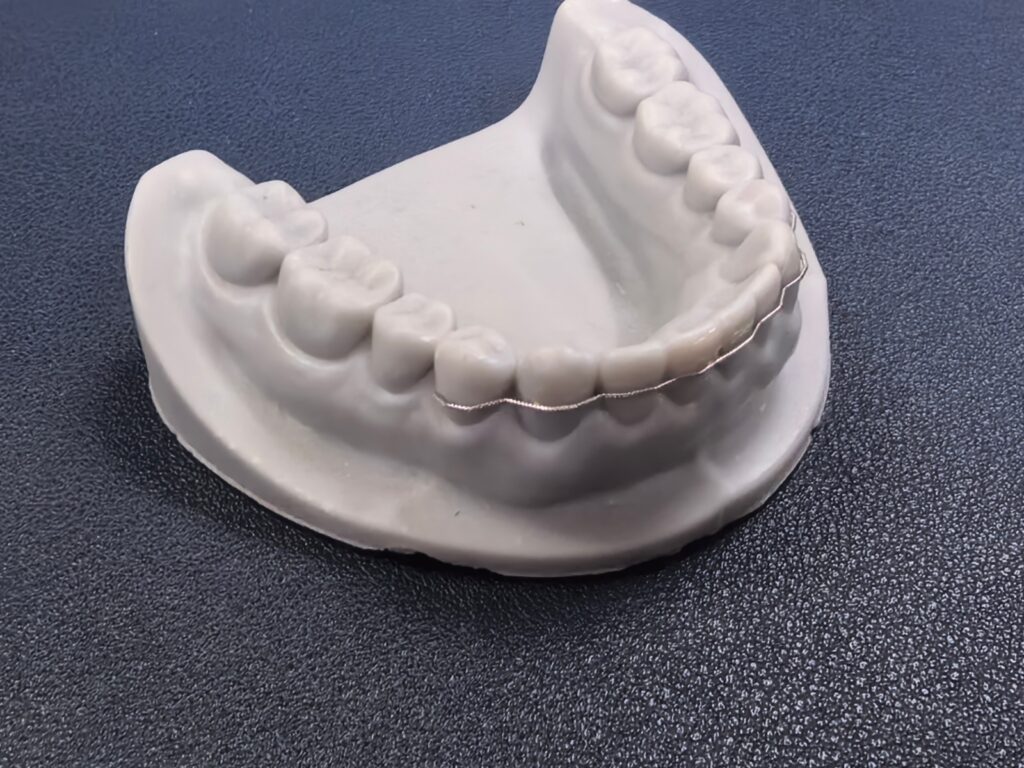

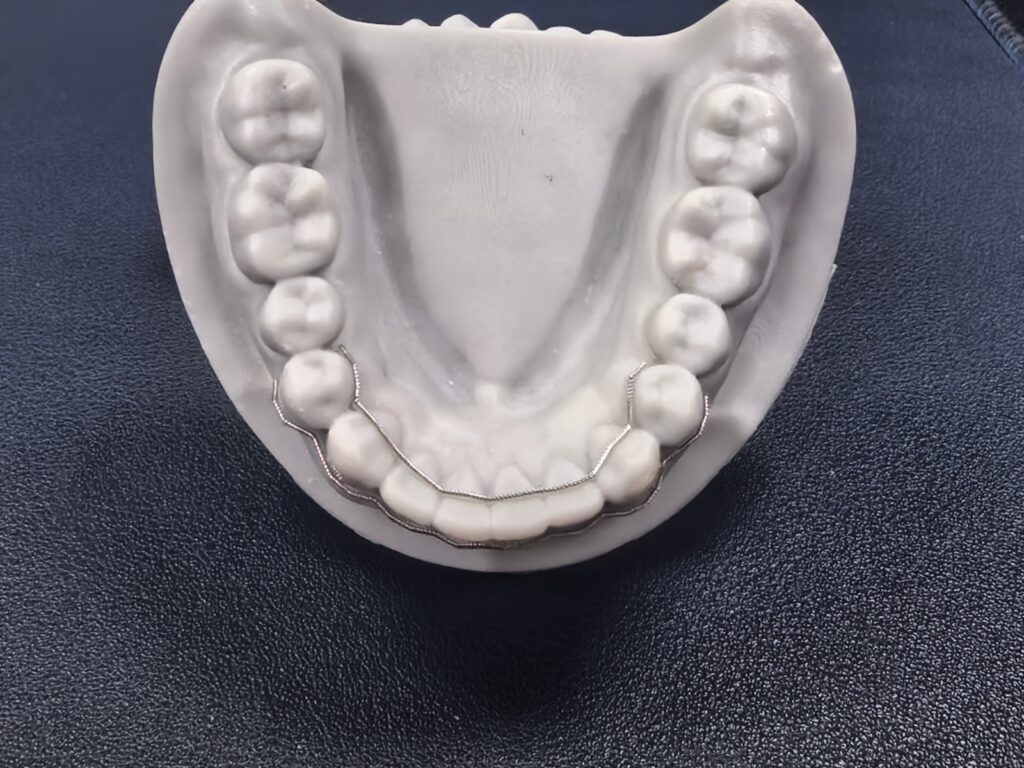

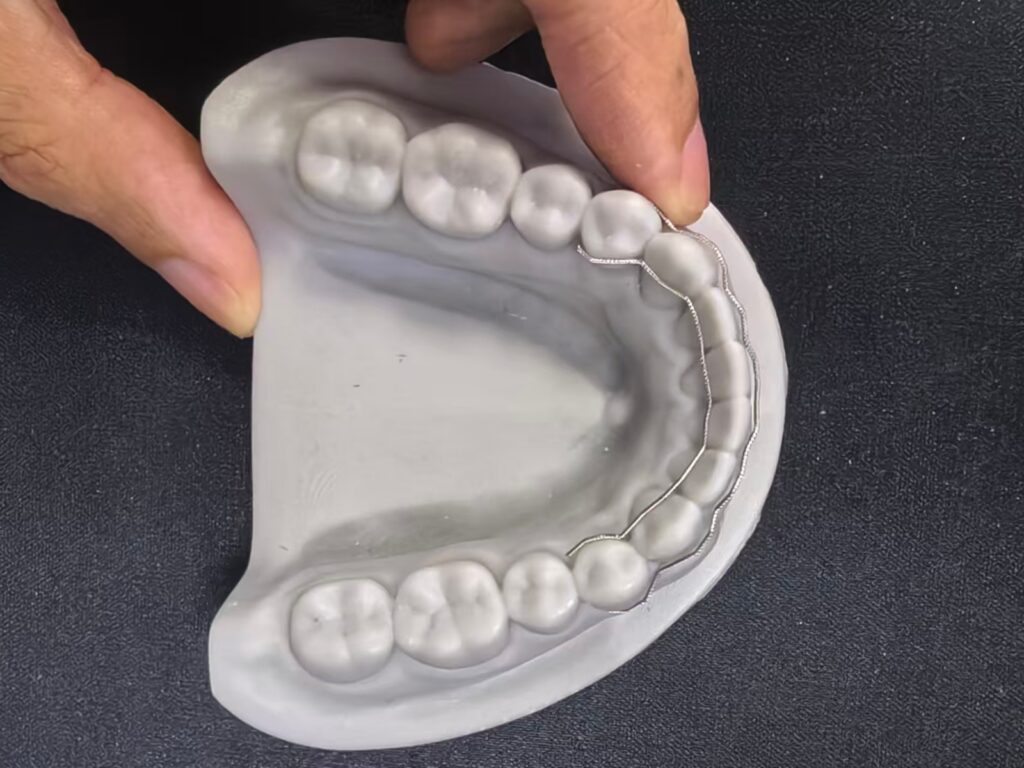

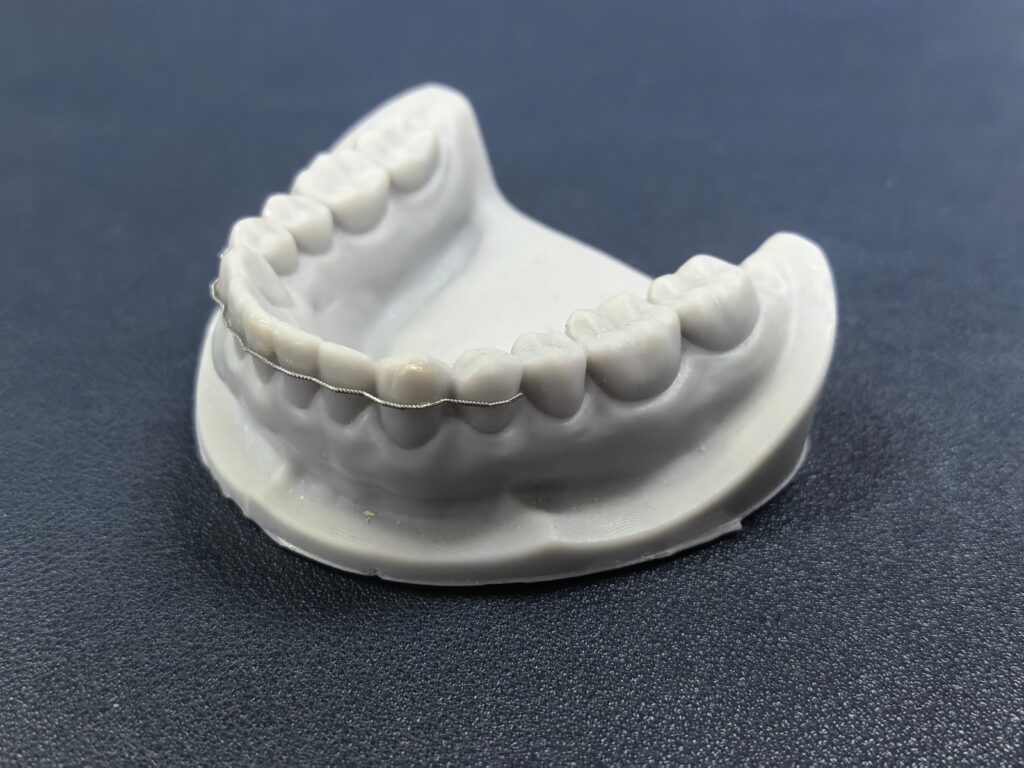

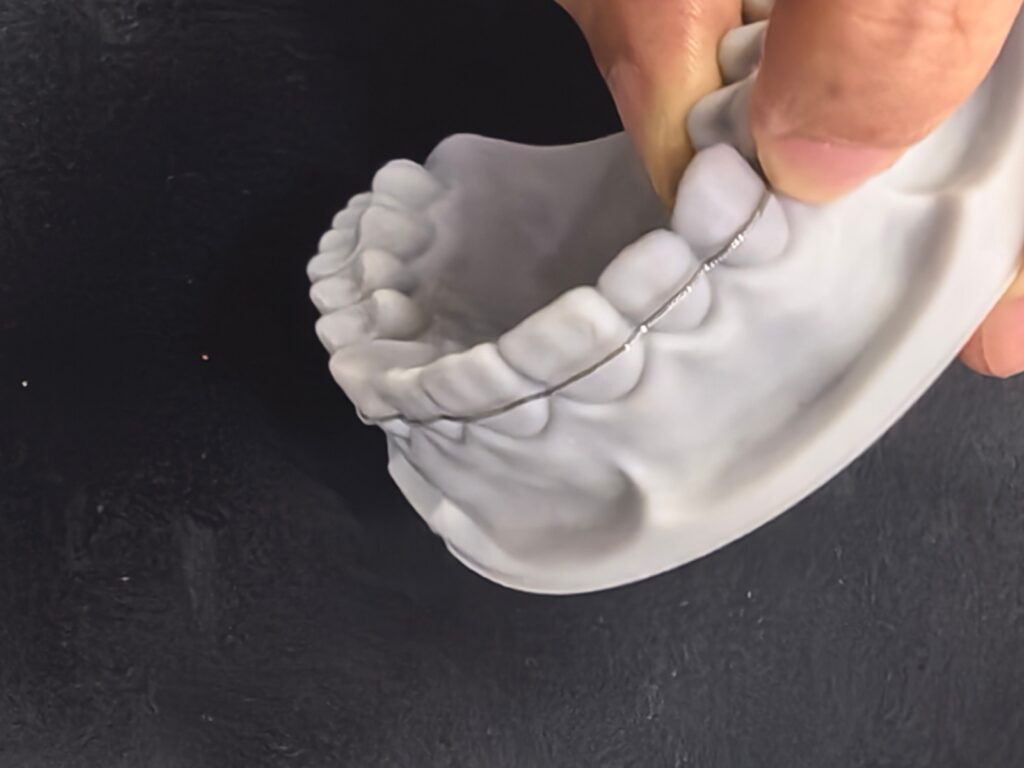

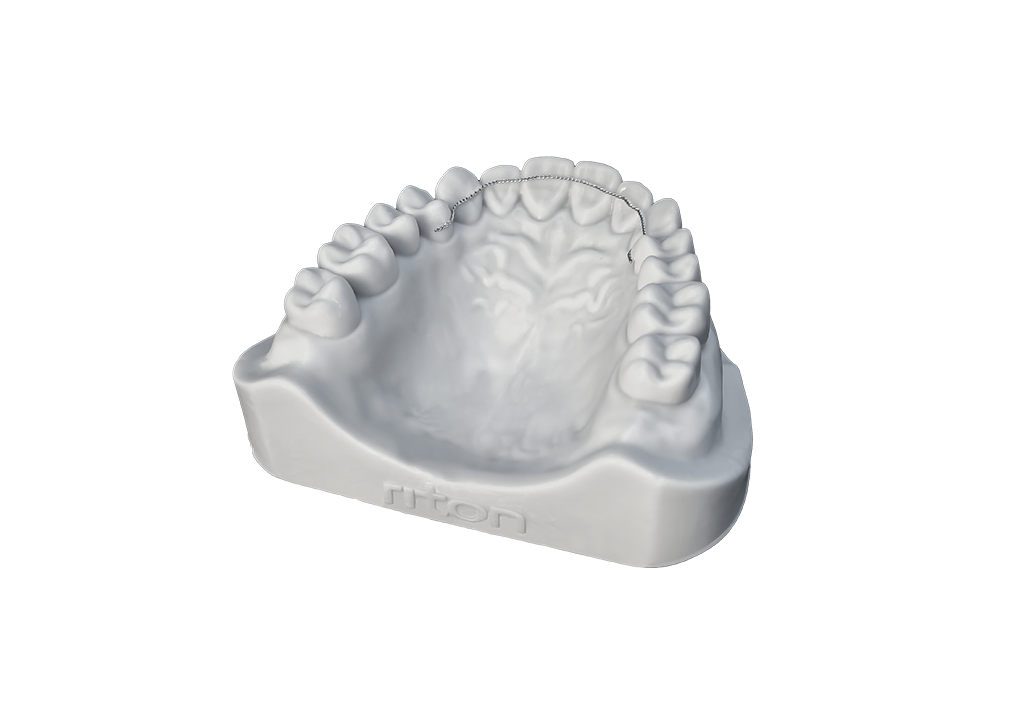

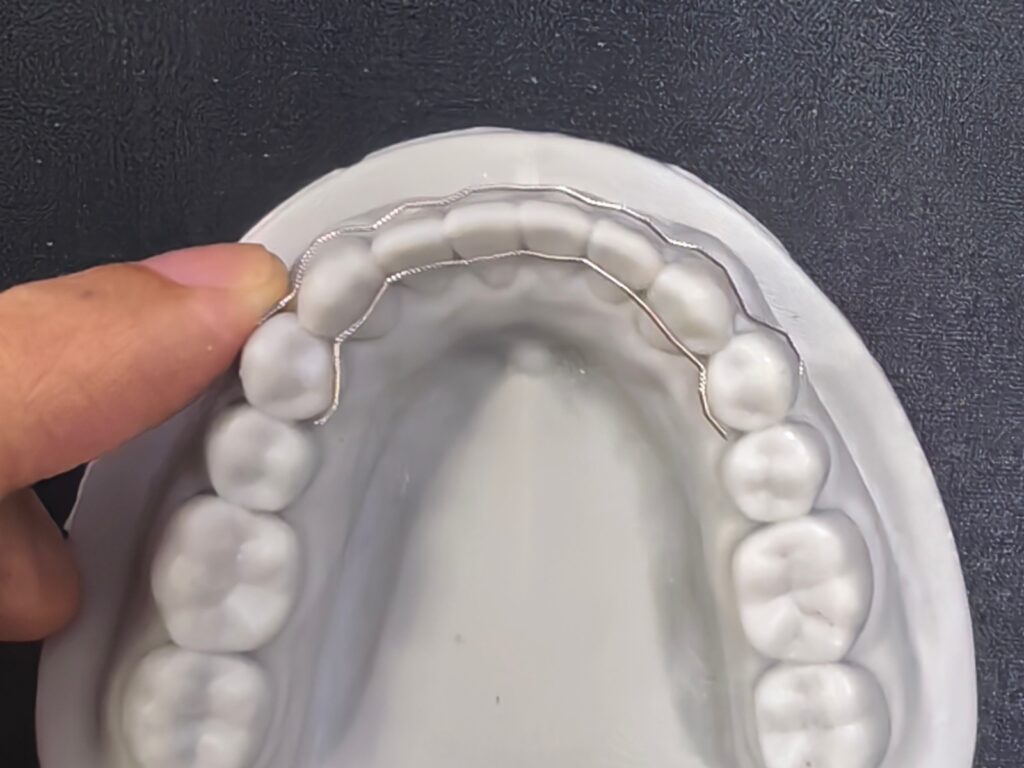

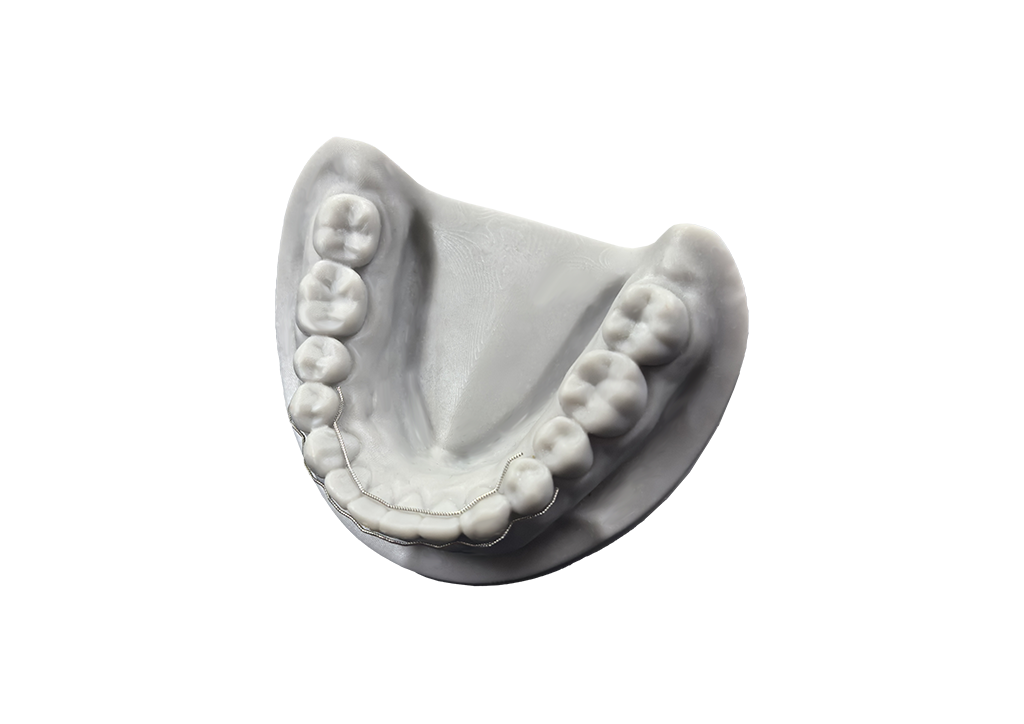

Bent Sample
