AX1030E

Vacuum Cleaner

AX1030E

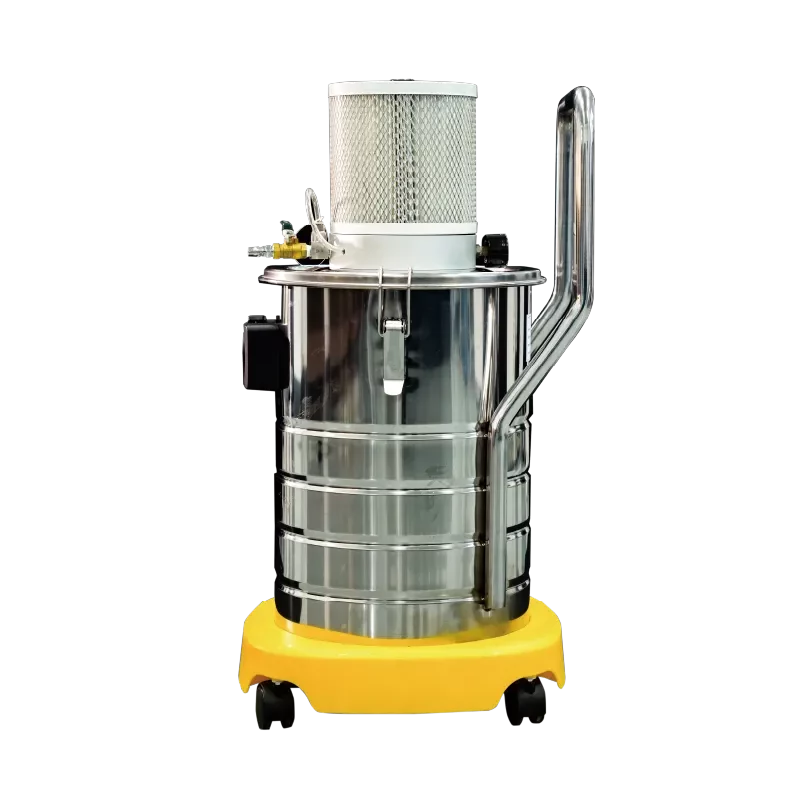

Explosion-proof Vacuum Cleaner

AX1030E

The AX1030E Explosion-proof Vacuum Cleaner is the standard auxiliary equipment for Riton 3D metal printer. It features pneumatic explosion-proof capability, full-body electrostatic discharge configuration, strong suction power, low noise emission, and compact size, etc. It aids in maintaining a clean working environment, preventing secondary dust pollution and electrostatic accumulation, and provides users with a safe, efficient, and convenient metal 3D printing dust removal experience.

Pneumatic Explosion-proof
Full-body Electrostatic Discharge Configuration
Large Filtration Area
Strong Suction Power, Low Noise
Compact Size

Document Download

Technical Parameters of AX1030E Vacuum Cleaner

Item	Technical Parameters
Type Of Drive	Pneumatic
Capacity	30 L (Single Barrel)
Filter Area	10800 cm²
Filter Area _2	6480 cm²
Filtering Accuracy	0.3 μm
Air Flow Rate	280 m³/h
Vacuum Suction	280 mbar
Noise	53 dB
Air Source Pressure	0.5-0.8 MPa
Gas Consumption	0.4 m³/min
Tracheal Requirements	8 x 12 mm
Tracheal Length	5 m
Suction Diameter	32 mm
Filter Cleaning Mode	Manual Cleaning
Product Size	430 x 450 x 800 mm
