Item | Parameter |
Power Supply | AC 220V，50Hz |
Power Consumption | ≤1200W |
Air Source | 0.6MPa Dry and Clean Air |
Overall Dimensions | 335 × 800 × 1650 mm |
Weight | Approx. 100kg |
Maximum Feed Length | 220mm |
Feeding Speed | 120 mm/s |
Feeding Accuracy | ±0.05mm |
Bending Speed | ≤200°/s |
Bending Repeatability | ±0.5° |
Compatible Wire Diameter | 0.5–1.2 mm |
Capable of bending steel wires with diameters ranging from
0.5mm to 1.2mm
Suitable for the production of various types of removable orthodontic appliance
<60 Seconds
Complete the bending of standard structural components
(such as Hyperbolic Labial Bow)
Provide dual assurance, ensuring that the bending angle deviation of the final product is
<±0.5°
Achieves an extreme convergence angle of 10°, with an arrowhead tip radius of only 0.9mm and an inner minimum forming clearance of 1.3 mm. Produces naturally smooth arcs and stable small arrowhead clasps for premolars, redefining industry benchmarks for precision bending.
The machine connects with the Riton Cloud & OrthoWireLab
Design data directly sent to equipment
Remote control of equipment’s start and stop
Seamless integration of design and manufacturing

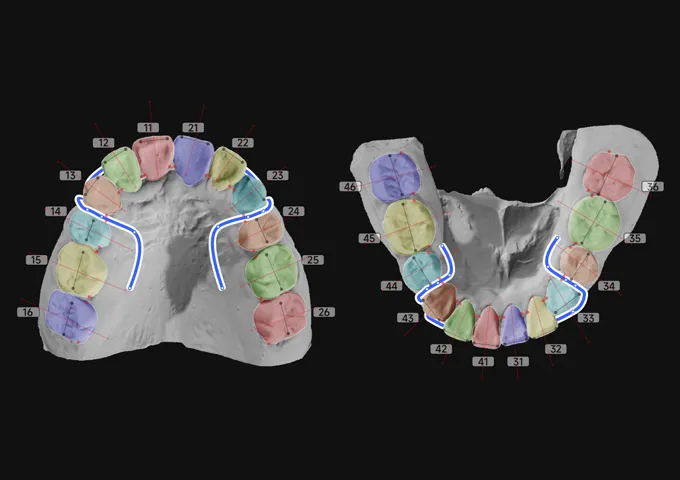

Al recognizes model feature points and quickly generates common appliance structures. The smooth-design function naturally rounds sharp bends, creating smoother, better fitting products with high shape fidelity.
Built-in intelligent AI algorithms in the OrthoWireLab
One-click generation of personalized archwire shapes
Effortlessly complete personalized design of removable orthodontic appliances

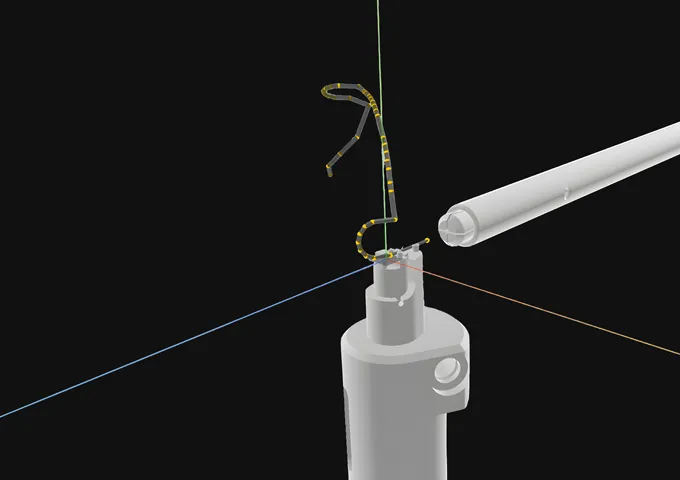

3D dynamic calculation automatically optimizes path planning, ensuring continuous, interference-free forming of the structure.
Multi-to-multi interconnection between the platform and Automatic Orthodontic Steel Wire Bending Machine WBM-V2
Full-process tracking and management of orders
Remote direct transmission of design data to the equipment end
Remote control of equipment’s start and stop
One-stop intelligent connection from order submission to delivery
Efficiently manage workflow

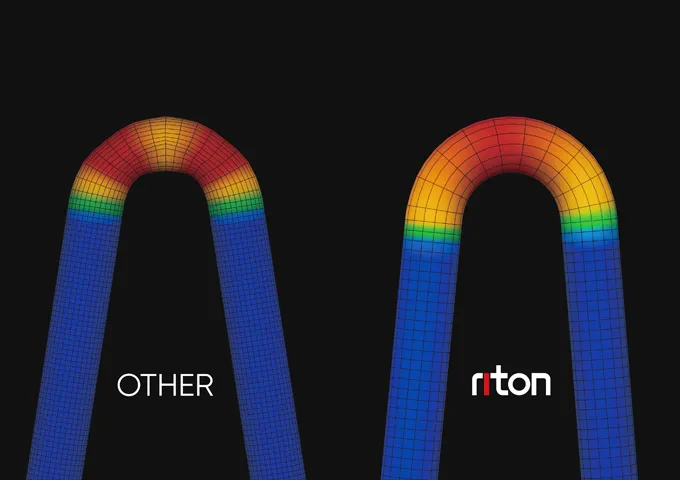

PLC + multi-axis servo control system delivers high positioning accuracy and repeatability. Six-axis coordinated motion ensures smooth operation, significantly reducing localized stretching and metal fatigue.
The platform is equipped with a task intelligent scheduling management system
Automatic sorting of processing tasks
Automatic matching of different specifications of wire bending systems
with corresponding equipment
No need for manual intervention, helps enterprises build efficient production lines

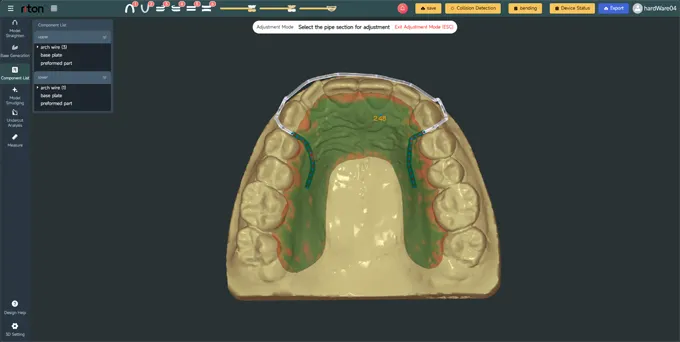

Enables coordinated design of wires and base plates, covering the full digital manufacturing chain from design → wire bending + base printing → assembly.
Bridge the gap between doctors, technicians, and devices, achieving seamless online connectivity. Building a New Ecosystem for Digital Production of Removable Orthodontic Appliances
