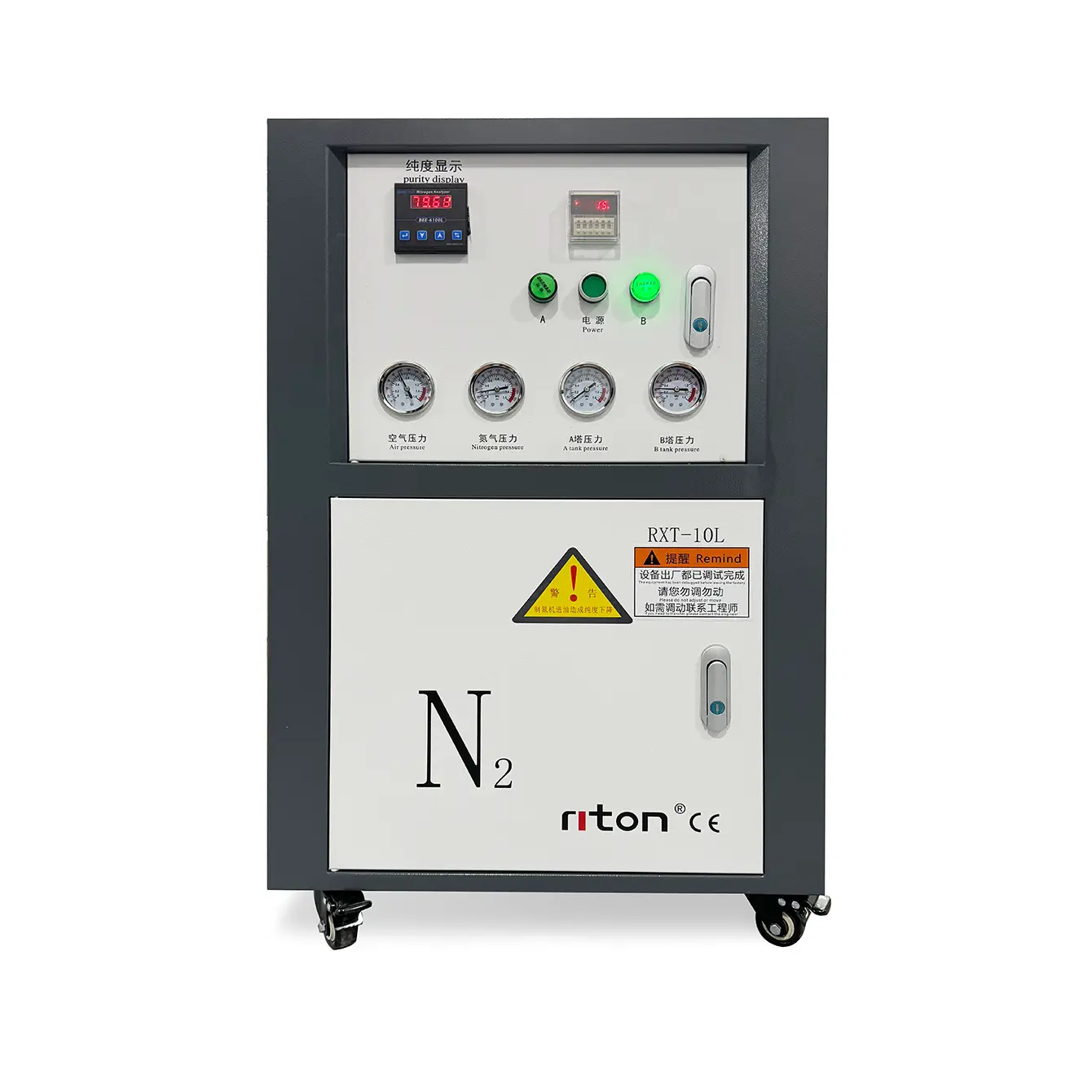

The RXT-10L high-purity general-purpose nitrogen generator is the auxiliary equipment for Riton desktop metal 3D printer, MLab. This nitrogen generator employs the pressure swing adsorption (PSA) principle to produce nitrogen, allowing for adjustable nitrogen purity according to actual needs. It offers advantages such as a simple process flow, small footprint, cost-effectiveness, easy operation, and convenient maintenance.
Nitrogen Purity Monitoring
Adjustable Nitrogen Purity
Compact Size
Simple Operation
Item | Parameter |
Weight | 70Kg |
Dimensions | 550*550*870mm |
Voltage | 220V 50HZ |
Power | 50W |
Air Pressure | 0.6-0.8MP |
Ambient Temperature | 5～40℃ (optimal at 20-25℃) |
Relative Humidity | ≤80% |
Nitrogen Output | 0.6Nm³/h (adjustable) |
Nitrogen Purity | 99.9% (adjustable) |
Compressed Air Pressure | 0.6～0.8MPa |
Compressed Air Dew Point | <-10℃ |
Compressed Air | Oil-free and water-free compressed air |
Oil Content in Compressed Air | <0.01PPM |
Configured Compressor | When selecting a compressor, ensure that the discharge capacity exceeds the effective gas consumption of the equipment. The compressor system must include a refrigerated dryer filtration system, which should be regularly drained to prevent significant impacts on the nitrogen generator's lifespan. |
