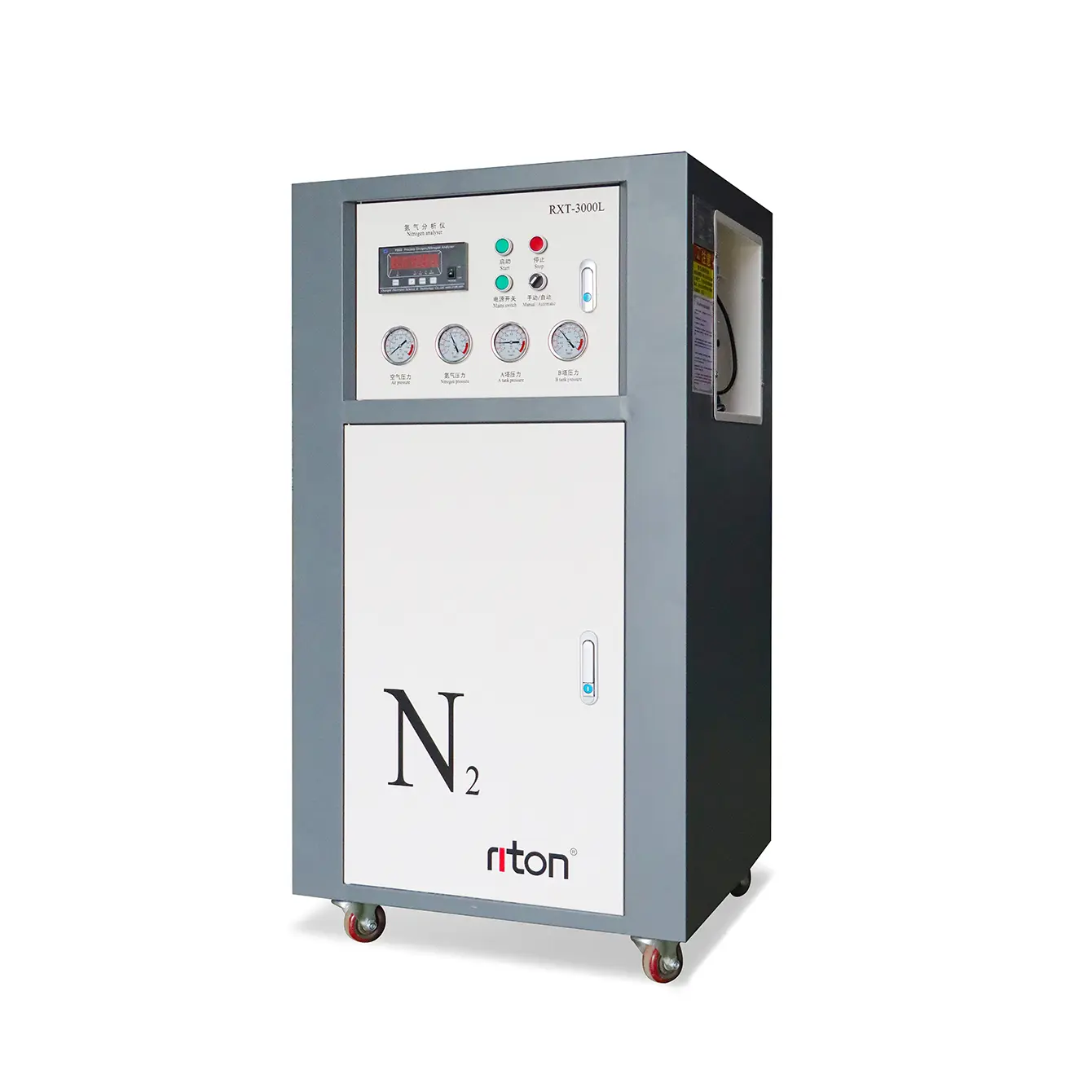

The RXT-3000L nitrogen generator is the auxiliary equipment for Riton metal 3D printers, designed to produce nitrogen gas required for metal sintering and 3D printing industries. This nitrogen generator utilizes the pressure swing adsorption (PSA) principle for nitrogen production, allowing the purity of the nitrogen to be adjusted according to actual needs. It features advantages such as nitrogen purity monitoring, intelligent start-stop control for nitrogen production, and a compact footprint.
Nitrogen Purity Monitoring
Adjustable Nitrogen Purity
Intelligent Start-stop Control for Nitrogen Production
Compact Size
Item | Parameter |
Producing Method | PSA |
Producing Capacity | 8-2 Nm³/h |
Nitrogen Purity | 99-99.999 % |
Nitrogen Pressure | 0.1-0.6 mpa |
Nitrogen Analyzer | P860 |
Inlet Pressure | 0.8 mpa |
Compressed Air Demand | 0.3Nm³/min |
Power | 50W |
Voltage | 220V/50hz |
Controller | PLC |
Dimensions | 700*600*1350mm |
Weight | 220kg |
Nitrogen Purity/Production Capacity
99% | 8m³/h |
99.5% | 6m³/h |
99.9% | 5m³/h |
99.99% | 3m³/h |
99.999% | 2m³/h |
